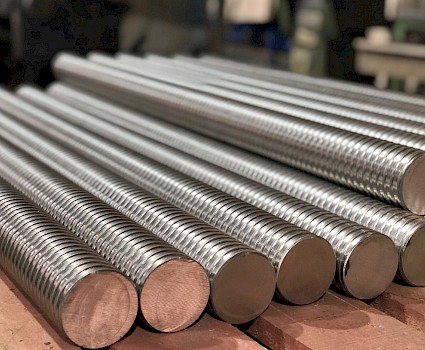

Grip-Rib
Grip-Rib has been developed as a high strength, high bond alternative to conventional reinforcement. Grip-Rib is particularly advantageous when used in the large diameters for capital projects. Grip-Rib is available as high strength, 650N/mm2 in 304 or 316 grade.
Grip-Rib can be produced quicker than a mill rolling of reinforcing bar as we carry stocks of material for cold forming.
BENEFITS
- Adventageous when used in large diameters
- Consistent rib pattern from cold-forming
- Easy three dimensional bending
- Strong bond in concrete fixing
- High strength thread rolled stainless steel bars
- Proven high bond strength
- Unique corrosive resistant product
- 6 metre standard lengths
- Superior ductility for seismic activity
APPLICATIONS
- Rock bolts
- Soil nails
- Docks and harbours
- Railway construction
- Coastal defence walls, slopes and slabs
- Ancient monuments
| Ref | Nom. Dia. | C.S.A | 0.2% proof load | Ultimate tensile load | Weight per metre |
| mm | mm² | kN | kN | Kg/m | |
| GR24 | 24 | 378 | 246 | 283 | 2.90 |
| GR27 | 27 | 492 | 320 | 368 | 3.90 |
| GR30 | 30 | 596 | 388 | 446 | 4.70 |
| GR33 | 33 | 737 | 480 | 552 | 5.75 |
| GR36 | 36 | 873 | 568 | 653 | 7.00 |
| GR39 | 39 | 1037 | 674 | 776 | 8.25 |
| GR42 | 42 | 1197 | 778 | 896 | 9.50 |
| GR45 | 45 | 1388 | 903 | 1038 | 10.90 |
| GR48 | 48 | 1562 | 1016 | 1168 | 12.40 |
| GR50-GR78 | Available on request for more details please call 0114 244 1333 | ||||
