Mesh
Stainless Reinforcement mesh is a hugely versatile reinforcement product, being widely used for a variety of applications such as Bridge decks, slipways, promenades, and coastal defence structures.
It is an ideal choice when the concrete cover to the steel is minimal, where salt spray is present or where a long life cycle is required.
Stainless Uk also supplies Stainless welded wire mesh.
BENEFITS
- Excellent corrosion resistance
- Non-magnetic properties
- High/low temperature resistance
- Life-cycle cost benefits
- Large mat sizes available
- Bent to your requirements
- Flush edges or overhangs
APPLICATIONS
- Roads
- Bridges
- Aquaducts
- Viaducts
- Marine / Coastal
- Tunnels
REINFORCEMENT MESH
Manufactured using ribbed bar to BS 6744 to the mesh patterns given in BS4483 and typically used where the concrete cover to the steel is minimal, or where a long life cycle is required.
Panels are produced using mechanical or manual welding methods. Stainless UK has facilities to manufacture panels up to the standard 4m x 2m size. Panels can be made to customer specifications and bent if required.
Stainless steel tying wire in 1.2mm diameter is held in stock. This is required for fixing all stainless steel reinforcement and also for fixing any highways bridge deck using carbon steel
Available in standard grades 304 and 316. For other grades see reinforcement bar.
| Technical Information | |
| Ultimate Tensile Stress | 550 N/mm² |
| Minimum 0.2% proof stress [effective yield] | 500 N/mm² |
| Standard mesh size | 4000mm x 2000mm or manufactured to suit your requirements |
| BS4483 Ref | Main Wires | Cross Wires | Mass per m² | ||||
| Pitch [mm] | Dia [mm] | CSA [mm²] | Pitch [mm] | Dia [mm] | CSA [mm²] | ||
| A393 | 200 | 10 | 393 | 200 | 10 | 393 | 6.16 |
| A252 | 200 | 8 | 252 | 200 | 8 | 252 | 3.95 |
| A193 | 200 | 7 | 193 | 200 | 7 | 193 | 3.02 |
| A142 | 200 | 6 | 142 | 200 | 6 | 142 | 2.22 |
| A98 | 200 | 5 | 98 | 200 | 5 | 98 | 1.54 |
| B1131 | 100 | 12 | 1131 | 200 | 8 | 252 | 10.90 |
| B785 | 100 | 10 | 785 | 200 | 8 | 252 | 8.14 |
| B503 | 100 | 8 | 503 | 200 | 8 | 252 | 5.93 |
| B385 | 100 | 7 | 385 | 200 | 7 | 193 | 4.53 |
| B283 | 100 | 6 | 283 | 200 | 7 | 193 | 3.73 |
| B196 | 100 | 5 | 196 | 200 | 7 | 193 | 3.05 |
STANDARD WELDED MESH
Can be supplied for a cost effective solution for innumerable applications throughout all types of industry.
Welded Mesh is manufactured by laying crosswires at 90° to the longitudinal wires and resistance welding at every intersection.
Available in sheets or rolls in stainless steel grades 304 and 316
Cut to sizes panels available to order
WRAPPING MESH
Also known as
- steel beam wrapping mesh
- screed reinforcement mesh
- render mesh
| Pitch mm | Wire Dia | Available Grades | Available Grades | |
| D49 | 100 | 2.5mm | 304 | 316 |
| D98 | 200 | 3.0mm | 304 | 316 |
WELDED MESH ON A ROLL
| Pitches | Wire Dia | Available Grades | |
| Sheet Size 30m x 1.22m Rolls | |||
| 1/4" x 1/4" | 0.8mm | 304 | |
| 1/2" x 1/2" | 1mm | 304 | |
| 1/2" x 1/2" | 1.6mm | 304 | 316 |
| 1" x 1" | 1.6mm | 304 | 316 |
| Cut to Size Available | |||
WELDED WIRE MESH
| Pitches | Wire Diameter | Available Grades | ||
| Sheet Size 6ft x 3ft | ||||
| 1" x 1" | 2.5mm | 3.0mm | 304 | |
| 2" x 2" | 2.5mm | 3.0mm | 304 | |
| 3" x 1/2" | 2.5mm | 304 | ||
| Sheet Size 8ft x 4ft | ||||
| 1/2" x 1/2" | 2.5mm | 3.0mm | 304 | |
| 1" x 1" | 2.5mm | 3.0mm | 304 | 316 |
| 1 1/2" x 1 1/2" | 3.0mm | 304 | 316 | |
| 2" x 2" | 2.5mm | 3.0mm | 304 | 316 |
| 3" x 1/2" | 2.5mm | 3.0mm | 304 | |
| 3" x 1" | 3.0mm | 304 | ||
| 3" x 3" | 3.0mm | 304 | ||
| Sheet Size 10ft x 5ft | ||||
| 1" x 1" | 3.0mm | 304 | ||
| 2" x 2" | 3.0mm | 304 | ||
| Sheet Size 2m x 1m | ||||
| 33 x 33mm | 3.0mm | 304 | ||
| 43 x 43mm | 3.0mm | 304 | ||
| 53 x 53mm | 3.0mm | 304 | ||
| 44 x 44mm | 3.0mm | 304 | ||

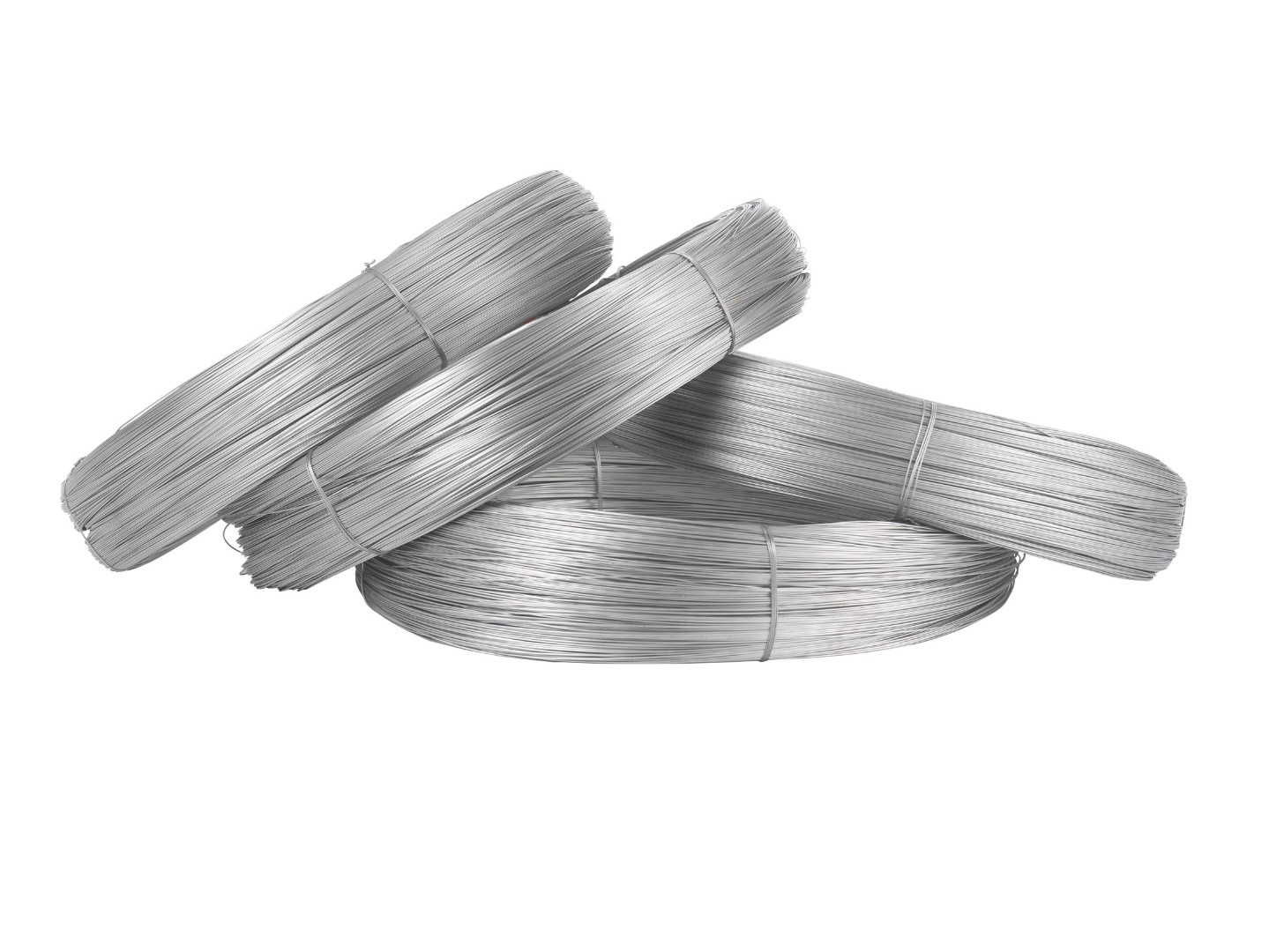

TYING WIRE
Stainless steel tying wire 1.20mm diameter supplied in 20 kg coils.

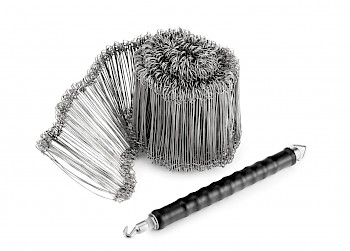

DOUBLE LOOP TIES
Stainless steel double loop ties and wire binder tool.

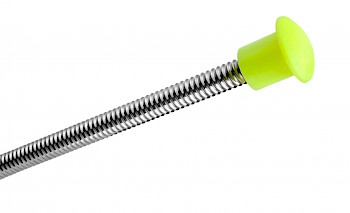

SAFETY END CAPS
Plastic protection caps for exposed bar ends.
