Stainless Threaded Rod (Studding)

Threaded Rod

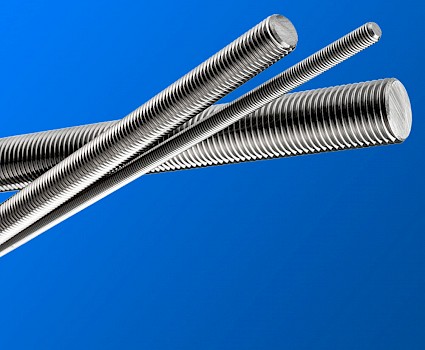

Stainless UK produce stainless steel threaded rod. Also referred to as stud, studding, all-thread or threaded bar.

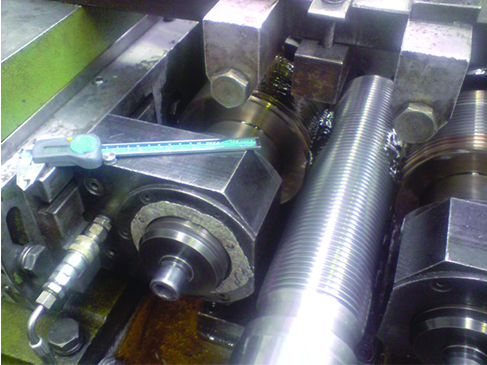

Threaded rod is produced using the thread rolling process. This ensures a smooth form and enhances tensile strength.

Sizes up to M76 double end or fully threaded available.

threadedbar_data_sheet.pdf

BENEFITS

High strength thread rolled stainless steel bars
M10 to M76 Double end or fully threaded
Superior ductility for seismic activity
Large stocks
Unique corrosive resistant product
Full strength nuts, couplers, accessories available

APPLICATIONS

Rock bolts
Soil nails
Bridge strengthening
Building and bridge cross ties
Ground anchors
Holding down bolts

STAINLESS STEEL METRIC

Grade A2 (304) and A4 (316) stainless steel
Strength grade class 50, 70, 80 and 100
Mechanical properties to BS EN 3506
Thread tolerances to BS 3643 6G
ASTM A193 grades B8, B8M and B8T available
45º chisel point ends available to order
Machine capacity up to M76

It is important to clearly specify both the grade of material and strength class when ordering.

For threaded bars, the specification should include the finish on the smooth portion, e.g as rolled, or class of polish.

For single or double-ended threaded bars the specification should include bar length and end thread lengths

Stainless steel metric studding can be supplied with a range of accessories which can be manufactured to meet individual contract requirements.

Strength Class	Min. UTS N/mm²	Min. Yield N/mm²	Elongation at Failure
50	500	210	0.6D
70	700	450	0.4D
80	800	600	0.3D

Thread	Weight per metre	Strength
		Class 70		Class 80
		0.2% proof	UTS	0.2% proof	UTS
	Kg/m	kN	kN	kN	kN
M12	0.72	41.0	64.0	54.0	73.0
M16	1.31	70.7	109.9	94.2	125.6
M20	2.05	110.3	171.5	147.0	196.0
M24	2.96	158.9	247.1	211.8	282.4
M27	3.83	206.6	321.3	275.4	367.2
M30	4.70	252.6	392.7	336.6	448.8
M33	5.78	312.3	485.8	416.4	555.2
M36	6.84	367.7	571.9	490.2	653.6
M39	8.14	439.2	683.2	585.6	780.8
M42	9.38	504.5	784.7	672.6	896.6
M45	10.90	587.7	914.2	783.6	1044.8
M48	12.32	662.9	1031.1	883.8	1178.4
M52	14.65	791.1	1230.6	1054.8	1406.4

NUTS AND COUPLERS

Load nuts and couplers have been designed to provide a strength of anchorage equal to the theoretical minimum required by the threaded bar. Lock nuts are for locking purposes only.
